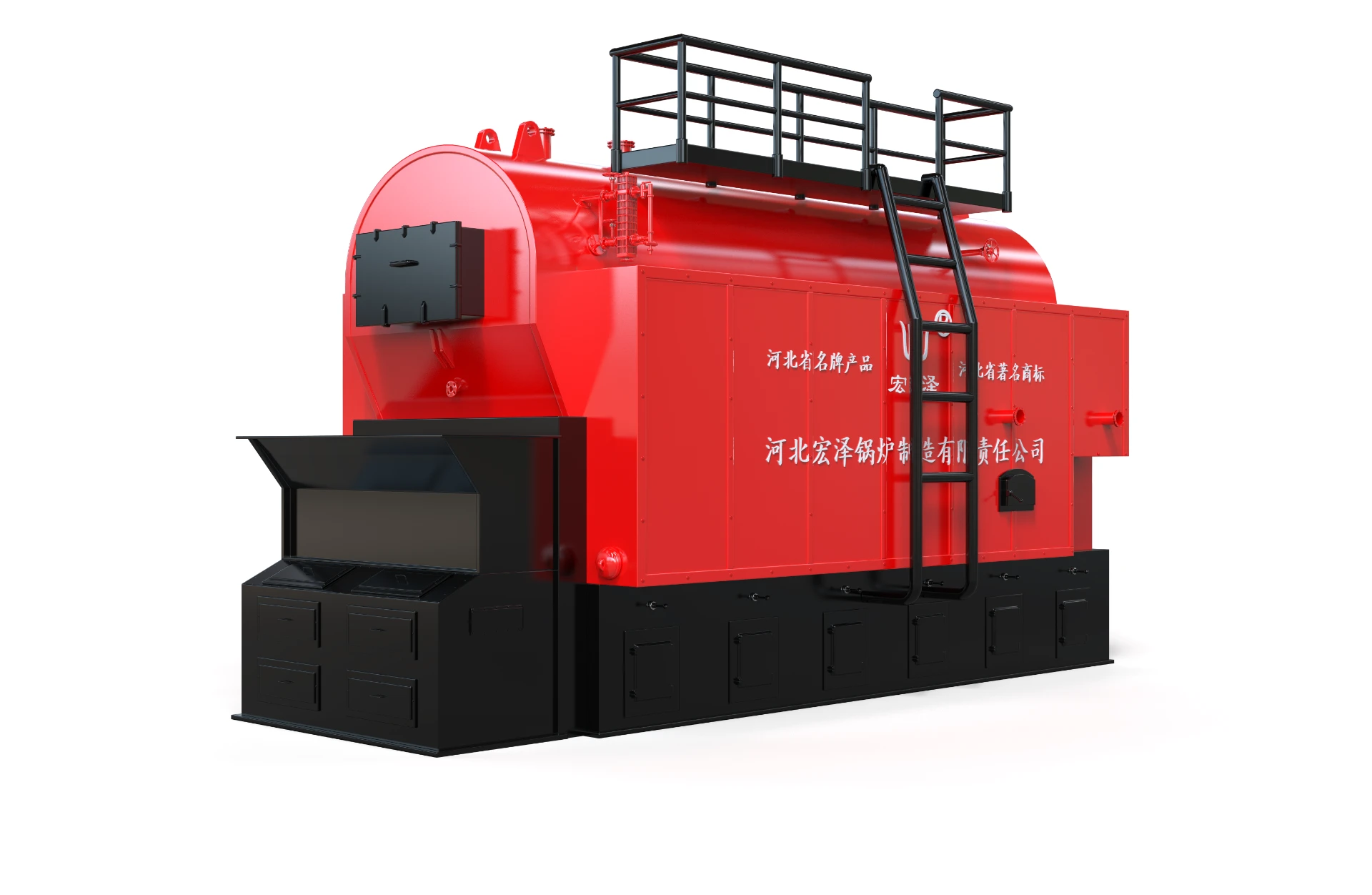

Steam Boiler Design Calculations for Efficient and Safe Operation in Industrial Applications

Steam Boiler Design Calculation Essential Aspects

The design of a steam boiler encompasses a variety of engineering principles and calculations. A steam boiler is a critical component in many industrial processes, providing steam for heating, power generation, and various manufacturing applications. Understanding the design calculations is essential to ensure efficient operation and safety of the boiler system.

1. Fundamentals of Boiler Design

Boiler design begins with a comprehensive understanding of thermodynamics and fluid mechanics. The primary goal is to efficiently convert fuel energy into thermal energy, which heats water to produce steam. The design must consider various factors including fuel type, boiler efficiency, capacity, and operational pressure.

2. Heat Transfer Calculations

Heat transfer is a crucial aspect of steam boiler design. The various modes of heat transfer include conduction, convection, and radiation. Designers must calculate the heat transfer coefficients for both the water side and the fire side to ensure optimal thermal performance. This involves using empirical correlations and coefficients found in industrial references.

The overall heat transfer area must also be calculated. This area depends on the amount of steam required and the temperature difference between the combustion gases and the water. The formula used is

\[ Q = U \times A \times \Delta T \]

Where - \( Q \) = heat transfer (BTU/hr) - \( U \) = overall heat transfer coefficient (BTU/hr · ft² · °F) - \( A \) = heat transfer area (ft²) - \( \Delta T \) = temperature difference (°F)

3. Boiler Capacity and Sizing

The boiler capacity must be accurately determined based on the steam demand of the system. This calculation typically considers factors such as peak load, average load, and the nature of the steam usage (saturated vs. superheated). The capacity is calculated using the following formula

Where 34.5 is the number of pounds of steam produced per hour per horsepower.

4. Pressure and Safety Considerations

Another vital aspect of steam boiler design is pressure calculations. The design pressure must exceed the maximum operating pressure to avoid rupture risks. ASME (American Society of Mechanical Engineers) guidelines are pivotal in establishing safety margins.

Additional calculations involve determining the thickness of the boiler shell and tubes to withstand the internal pressures, which can be computed using formulas derived from the Barlow’s formula

\[ t = \frac{PD}{2SE} \]

Where - \( t \) = required thickness (inches) - \( P \) = internal pressure (psi) - \( D \) = outside diameter (inches) - \( S \) = allowable stress (psi) - \( E \) = joint efficiency

5. Fuel and Efficiency Considerations

The choice of fuel affects boiler design calculations, influencing efficiency, emissions, and operational costs. Combustion calculations must be performed to ascertain the stoichiometric air requirement and excess air for complete combustion, using the following equation

\[ \text{Air Required (lb/hr)} = \text{Fuel Flow (lb/hr)} \times \frac{\text{Stoichiometric Air}}{1 - \text{Excess Air}} \]

Optimizing the air-to-fuel ratio is essential for maintaining high operational efficiency and minimizing emissions.

6. Conclusion

In summary, steam boiler design involves a complex interplay of calculations related to heat transfer, capacity, pressure, safety, and fuel efficiency. Each component must be meticulously analyzed to ensure the boiler operates safely and efficiently within its intended parameters. Engineering principles and adherence to regulatory standards not only ensure compliance but also enhance the operational lifespan of the equipment. A thorough understanding of these design calculations is imperative for engineers and operators in the energy and manufacturing sectors. By prioritizing design accuracy, industries can attain greater operational efficiency while minimizing environmental impacts, ultimately contributing to sustainable industrial practices.
