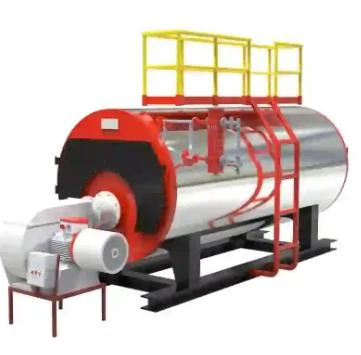

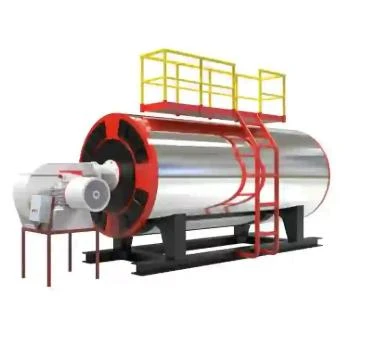

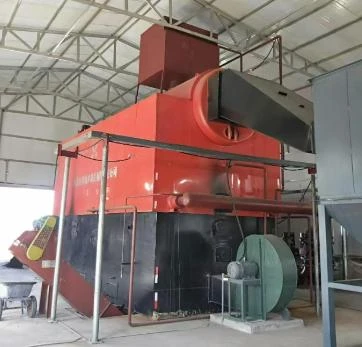

Biomass fired thermal Oil Boiler

Thermal Power: 30-1400 (10⁴Kcal/h)

Working pressure: 0.8-1.0 MPa

Outlet temperature: 320 °C

Available Fuel: Lignite, bituminous coal, anthracite, gangue

Biomass fired thermal Oil Boiler is fueled by Biomass, heat is provided by natural gas burner, and heat transfer oil is the heat carrier. The circulating pump is used to force the thermal oil to circulate in the liquid phase and transfer the heat to one or more heat-using equipments Rated

CONTACT NOW DOWNLOAD PDF

Details

Tags

Performance Advantages

1、Able to obtain higher working temperature under lower operating pressure.

2、Can carry out stable heating and precise temperature adjustment.

3、It has complete operation control and safety detection devices.

4、The best thermal efficiency can be maintained under different working conditions.

5、Liquid-phase heat transfer, the heat carrier at <300℃ is 70-80 times smaller than the saturated vapor pressure of water, and the heat transfer oil is not easy to freeze in cold areas.

6、It can replace the water-poor steam boiler heating with water as the medium.

7、Closed loop heating, high efficiency of heat utilization.

Parameters

Model	Rated thermal power (Kw)	Rated thermal power (10⁴Kcal/h)	Design working temperature (≤℃)	Rated working pressure (Mpa)	Thermal efficiency (≥%)	Oil capacity (m³)
YQW-350 Y(Q)	350	30	320	1	95	0.3
YQW-460 Y(Q)	460	40	320	1	95	0.35
YQW-580 Y(Q)	580	50	320	1	95	0.4
YQW-700 Y(Q)	700	60	320	1	95	0.6
YQW-940 Y(Q)	940	80	320	1	95	0.78
YQW-1200 Y(Q)	1200	100	320	1	95	1.2
YQW-1400 Y(Q)	1400	120	320	1	95	1.35
YQW-1800 Y(Q)	1800	150	320	1	95	1.5
YQW-2100 Y(Q)	2100	180	320	1	95	2
YQW-2400 Y(Q)	2400	200	320	1	95	2.6
YQW-3000 Y(Q)	3000	250	320	1	95	3.2
YQW-3500 Y(Q)	3500	300	320	1	95	3.9
YQW-4000 Y(Q)	4000	350	320	1	95	4.5

biomass fired thermal oil boiler

biomass fired thermal oil boiler manufacturers
