Understanding the Working Principle of Thermal Oil Heaters

Thermal oil heaters, also referred to as thermal fluid heaters, are specialized heating systems designed to transfer thermal energy efficiently through the use of heat transfer fluids. These systems are crucial in various industrial applications, including chemical processing, food production, and manufacturing, due to their ability to operate at high temperatures and provide uniform heating. In this article, we will delve into the working principle of thermal oil heaters, exploring their functionality, components, and benefits.

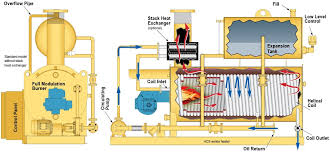

At the heart of a thermal oil heater is the thermal oil or fluid, which acts as the medium for heat transfer. Unlike water or steam, which has a relatively low boiling point, thermal oils (such as synthetic oils or mineral oils) can withstand much higher temperatures without changing to vapor. This property makes thermal oil heaters ideal for processes that require heat at temperatures exceeding 300°C (572°F). The heater operates based on a closed-loop system, which minimizes heat loss and enhances efficiency.

The heated thermal oil is then circulated through a network of pipes using a pump. These pipes connect the heater to various heat-exchange units, such as heat exchangers, reactors, or other industrial equipment that requires heating. The strategic placement of these heat exchangers allows for efficient transfer of heat from the thermal oil to the process fluids or materials. As the thermal oil flows through these systems, it releases its heat, causing the process fluids or materials to be heated seamlessly.

The return path of this closed-loop system is designed to ensure that the cooled thermal oil is directed back to the heater for reheating. This cycle continues indefinitely, as long as there is a demand for heat, ensuring that energy is utilized efficiently throughout the system.

One of the significant advantages of thermal oil heaters is their ability to provide stable and consistent temperatures. Unlike water-based systems, which can experience fluctuations in pressure and temperature, thermal oil systems maintain consistent thermal performance. This stability is essential in processes that necessitate precise temperature control, such as in the food industry, where the quality and safety of products are paramount.

Furthermore, thermal oil heaters offer flexibility in their operation. Depending on the design, they can be adjusted to operate at varying loads, accommodating changes in production demands. Additionally, because the thermal oil remains in a liquid state throughout its circulation, the system can prevent issues such as steam formation, pressure build-up, and potential hazards related to high-pressure steam systems.

Maintenance of thermal oil heaters is also relatively straightforward. Regular inspections, oil sampling, and monitoring of system parameters can prevent complications and ensure the longevity of the heater. Moreover, because thermal oils are designed to withstand high temperatures and do not require frequent replacement, operational costs can be lower compared to traditional heating systems.

In conclusion, thermal oil heaters are indispensable components in various industrial processes, providing efficient, reliable, and safe heating solutions. By understanding their working principles—ranging from the combustion of fuel to the circulation of thermal oils—industries can optimize their processes while ensuring energy efficiency and product quality. Whether in chemical manufacturing, food processing, or any other application requiring high-temperature heating, thermal oil heaters stand out as a robust option tailored to meet diverse heating needs. Their unique attributes and operational simplicity continue to make them a popular choice among engineers and industry professionals worldwide.
